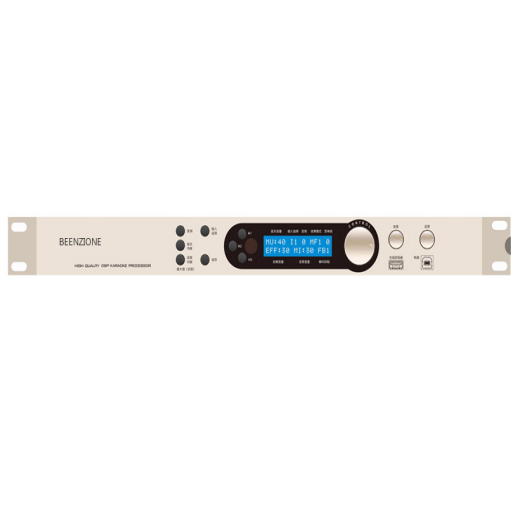

This series of products is a karaoke effect device with speaker processor function, and each part of the function is independently adjustable.
Adopting a 24 bit data bus and a 32 bit DSP.
The MUSIC input channel is equipped with 10 segments of parametric equalization.
The MIC input channel is equipped with 15 parameter equalizers.
The main output is equipped with 5 parameter equalizers.
The mid output, rear output, and subwoofer are all equipped with 3-segment parametric equalization.
The microphone has 3 levels of feedback suppression and can be selected as OFF/ON.
It can store 16 modes.
The microphone output, main output, center output, subwoofer output, and rear output are all equipped with voltage limiting and delay functions.
Built in manager mode and user mode, user mode cannot be stored after adjusting parameters.
This machine is equipped with a full-featured menu, which can also be set through the PC interface
Technical parameters Frequency response range (-1dB): (MUSIC MIC) 20Hz~50KHz
Input sensitivity: （MIC）11MV （MUSIC）210MV
Main channel tone (± 10dB) 3-segment parametric equalization
Ultra low frequency tone (± 10dB) 3-segment parametric equalization
Mid tone (± 10dB) 3-segment parametric equalization
Music tone (± 10dB) 10 segment parametric equalization
Microphone pitch (± 10dB) 10 segment parametric equalization
Microphone low cut 0Hz-300Hz
Signal to noise ratio (weighted by A): ≥ 95dB
Split microphone can adjust EQ separately
From now on, solve the compatibility debugging problem of wireless and wired microphones
