Analog input 4 x XLR balanced type
Analog output 8 x XLR balanced
Minimum load of 150 ohms
THD N distortion 0.001% at 1kHz 0dBu
S/N signal-to-noise ratio>100dBA
Frequency response 20Hz-20kHz- 0.5dBu at 20Hz and 20kHz
24 bit DSP processing for AD&DA conversion
DSP processing MARANI ® DSP, 24x32 bit filtering processing, 96 bit precision intermediate data operation result
The parameter equalizer input has 30 filters
Output with 7 filters
Filter types: Bell, High/Low Shaffer, High/Low Pass, Bandpass, Notch, and All Pass filters are optional
The gain range of the filter is:- 15dBu~15dBu, step accuracy: 0.5dBu
The input&output gain range is:- 18dB~12dB, step accuracy: 0.1dB
The center frequency can be adjusted with a step accuracy of 1Hz within the frequency range of 20Hz~20kHz
Filter Q-value/Broadband Shafer, High/Low Pass Filter Q-value: 0.1-5.1; Bell filter Q value: 0.4 ~ 128;
Bandpass, notch, and all pass filters with Q values ranging from 4 to 104
High and low-pass filtering Butterworth slope: 6/12/18/24dB/Oct
Bessel slope: 12/24/48Db/Oct
Linquets Raleigh: 12/24/48dB/Oct
Input noise threshold range:- 80dBu ~ -50dBu; Start control time: 1ms ~ 1000ms; Release time: 10ms ~ 1000ms
Enter RMS limiting threshold range:- 14dBu~16dBu, with adjustable bypass ratio of 2:1~32:1; Turning point range: 0%~100%; Supply range:- 12dB~12dB start time: 5ms ~ 200ms; Release time: 0.1 sec ~ 3 sec
Output peak voltage limit threshold range:- 14dBu~16dBu, optional start control time for bypass: 1ms ~ 900ms; Release time: 0.1 sec ~ 5 sec
Input/output channel polarity positive (0 °)/negative (180 °) optional
Input/output channel mute ON/OFF optional
Delay up to 420.998 ms per input channel, adjustable delay up to 128.998 ms per output channel. Summary
User preset parameters 24

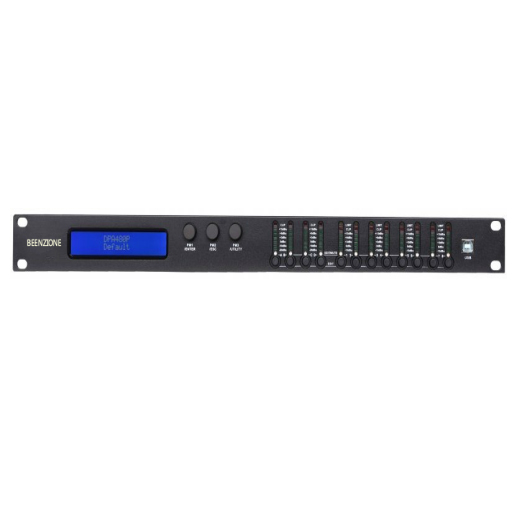

Front panel 2x24 character LCD display
Input 7 lights to display [-20dBu to 15dBu]; Clipping]
Output 7 lights display [-15dBu to 15dBu; Clipping; Limitation: The output light can be used to display the output level or display the voltage limit
Blue LED light (edit) displays the status of each channel
Red LED light (mute) displays the status of each channel
NAV/PM1, PM2, PM3 are switches for selecting the rotary encoder menu
ENTER, ESC, UTILITY are button type potentiometer entry/exit/application switches
The EDIT/MUTE button allows for individual control and editing of each channel
B-type USB interface
Rear board 4 x XLR female connector (input)
8 x XLR male connector (output)
2 x RS485 connectors
1 x Grounding/Suspension toggle switch
IEC C13 16A power socket; Ship shaped power switch
AC power supply suitable for power supply: 90-240VAC (50/60Hz) – 40W
Size 19 "x 1.75" x 9 "(482 x 44 x 229 mm) 1RU
Net/gross weight 7.71 lbs (3.5kg)/8.82 lb (4kg)
